Enstall FlatFix Fusion Grounding Spring 100-7502

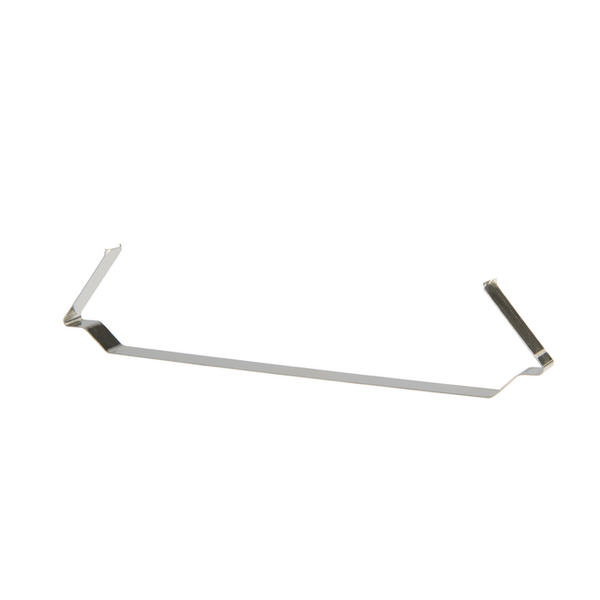

The FlatFix Fusion grounding spring is a stainless steel component designed for flat roof solar mounting systems. It attaches to the long or short mounting element and compensates for misalignments between mounting profiles to ensure proper electrical grounding contact.
The spring is inserted into the slots of the mounting element before the mounting profile is clicked into place. One spring provides a grounding connection with a contact area of 3 mm². Two springs create a 6 mm² connection. The component is manufactured from stainless spring steel (0.3 mm thickness) and is part of the FlatFix Fusion system, which carries a 20-year manufacturer warranty.
Trade prices are for company accounts
Sign in or register your company to see live prices and place orders.
Specifications
- Dimensions
- 138.5 × 27.6 × 0.3 mm
