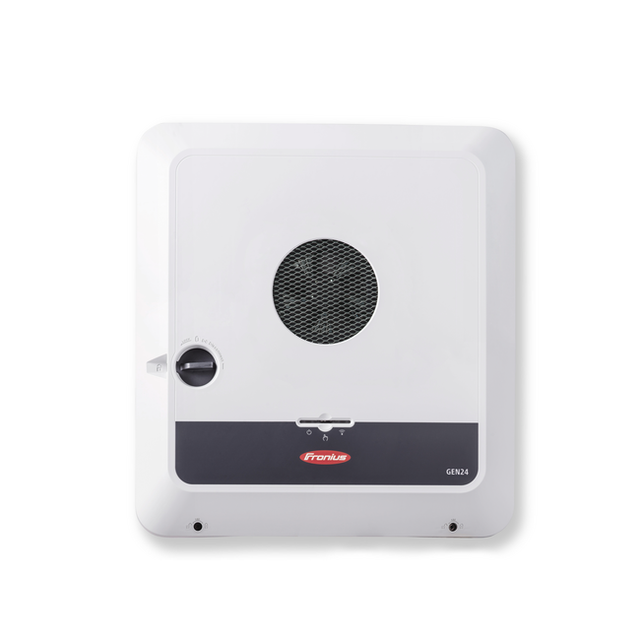

Fronius Primo GEN24 Plus SC 3.6 kW Hybrid Inverter

The Fronius Primo GEN24 Plus SC 3.6 is a single-phase hybrid inverter with 3.6 kW rated AC power and 3.68 kVA apparent power. It features two independent MPPT trackers with four DC inputs, enabling flexible array configuration and up to 150% DC oversizing. The inverter supports both PV Point (basic backup power via socket) and Full Backup power options for whole-home supply during grid outages.

With integrated AFCI arc-fault protection, DC SPD2 surge protection, and advanced energy management functions, the GEN24 Plus SC can be combined with compatible battery storage systems (Fronius Reserva, BYD Battery-Box, and LG FLEX) for maximum energy independence. Open interfaces support seamless integration with Fronius and third-party components via WIFI/LAN connectivity.

The inverter operates efficiently across DC input voltages of 65–600 V with a transformerless design and active cooling technology. It is suitable for both indoor and outdoor installation, with IP66 protection, operating temperature range of −40 to +60 °C, and a compact form factor of 530 × 474 × 165 mm.
