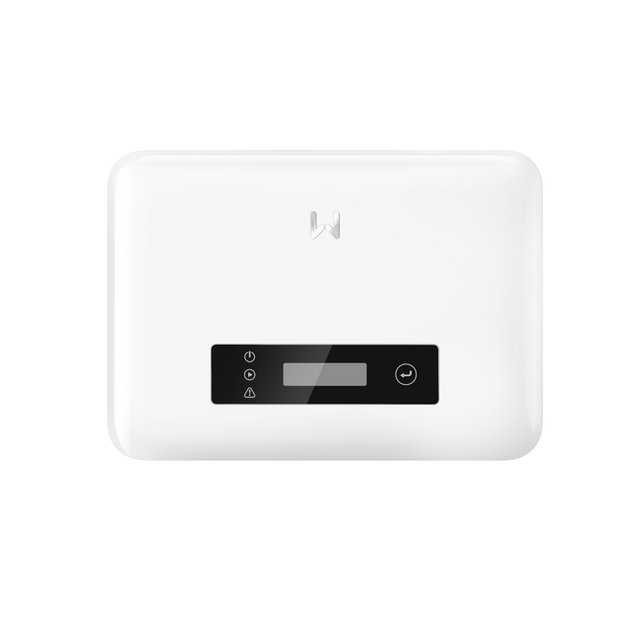

GoodWe GW2000-XS-30-4 2kW Single-Phase String Inverter

The GoodWe GW2000-XS-30-4 is a compact, lightweight single-phase string inverter for residential solar systems. With a 2 kW nominal output power and maximum efficiency of 97.6%, it delivers high performance in a space-saving form factor. The inverter features one MPPT tracker, a maximum DC input current of 16 A per string, and a low 50 V start-up voltage, making it compatible with modern high-power PV modules.

Designed for both indoor and outdoor wall-mounted installation, the unit operates silently using natural convection cooling and includes integrated protection against PV string faults, AC overcurrent, and reverse polarity. Communication options include WiFi, LAN, and Bluetooth, along with optional 4G connectivity for remote monitoring and smart home integration. All protection features and surge protection (Type III standard, Type II optional) are integrated into the unit.

The inverter is IP66-rated, weighs 4.6 kg, and measures 306 × 218 × 119 mm. It operates over an extended temperature range of −25 to +60 °C and supports 50/60 Hz grid frequencies with output voltage adjustment per local standards.
