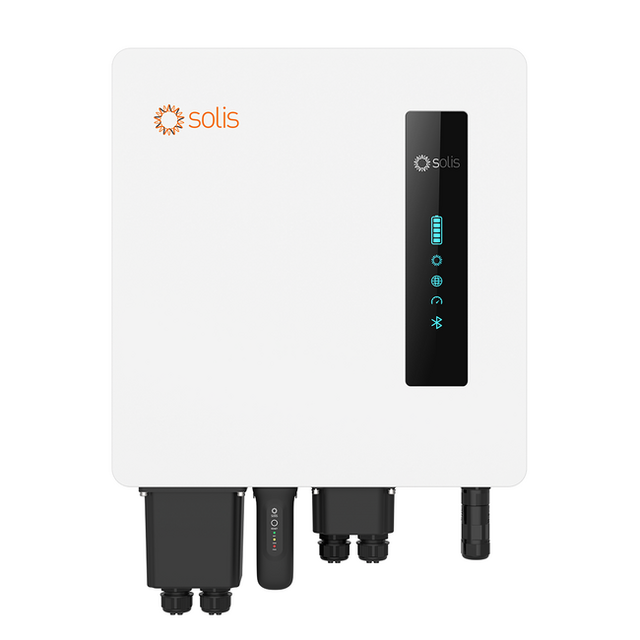

Solis S6-EA1P3.6K-L Single Phase AC-Coupled Inverter 3.6kW

The Solis S6-EA1P3.6K-L is a single-phase, low-voltage AC-coupled inverter rated at 3.6 kW, designed for residential energy storage systems. It connects to lithium-ion batteries with a 40–60 V voltage range and supports real-time monitoring, remote firmware upgrades, and battery healing functions to extend battery life.

Key capabilities include six configurable battery charging and discharging time-of-use (TOU) settings, peak shaving in self-use and generator modes, and low-power standby to reduce system consumption. The inverter features IP66 protection, operates across a wide ambient temperature range (−25 to +60 °C), and includes integrated energy metering with CT connections.

Communication options include RS485, CAN, and optional Wi-Fi/LAN. The unit measures 440 × 465 × 192 mm, weighs 19.9 kg, and carries a 10-year factory warranty in multiple European markets.
