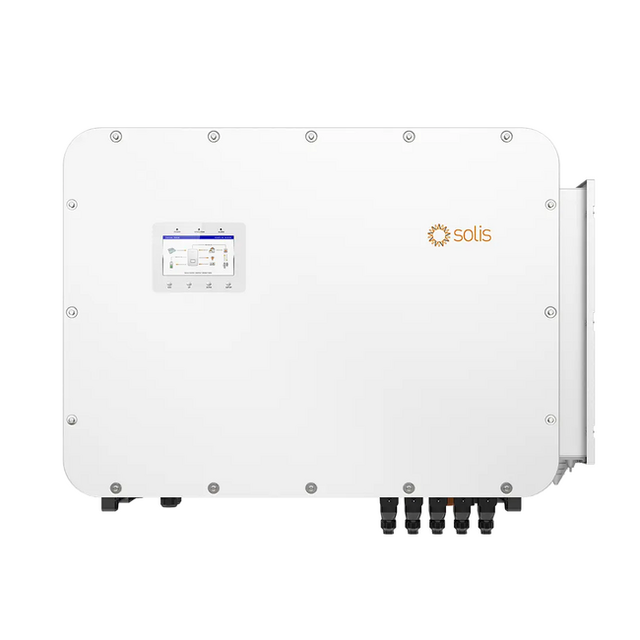

Solis S6-EH3P100K10-NV-YD-H 100kW Three-Phase Hybrid Inverter

The Solis S6-EH3P100K10-NV-YD-H is a three-phase hybrid energy storage inverter rated at 100 kW AC output, designed for large-scale commercial and industrial PV installations with battery backup capability. It features 10 MPPT trackers with 20 input strings, supporting PV input up to 200 kW and high-voltage lithium-ion battery systems (300–950 V) with dual battery ports and up to 200 A charge/discharge capability.

The inverter combines DC and AC coupling flexibility, enabling seamless retrofit and system expansion. Key technical capabilities include a maximum PV input voltage of 1000 V, transformerless topology, and 97.6% maximum efficiency. It supports grid-tie, off-grid, and hybrid modes with backup-switch time under 10 ms, 160% overload capacity for 200 ms in off-grid mode, and intelligent load management. Battery reserve and smart port features allow integration with multiple energy sources including grid-tied inverters, diesel generators, and wind turbines.

Built for durability with IP66 protection, operating temperature range of −25 to +60 °C, and a 7-inch industrial touchscreen display. Communication options include CAN, RS485, Ethernet, and optional Wi-Fi and cellular connectivity. Supports up to 10 units in parallel (power distribution cabinet recommended for more than 6 units). Dimensions: 1174 × 814 × 400 mm; weight: 170 kg.
